BYD Battery-Box Model Finder
Identify the model
Modules in the stack
Count the battery modules only. The dark grey control unit on top is not a module and adds no capacity.
2–5 modules
CEC approved model
HVS 10.2
- Usable capacity
- 10.24 kWh
- Nominal capacity
- 10.24 kWh
- Module capacity
- 2.56 kWh
- Number of modules
- 4
- Approved
- 19/10/2023
- Expires
- 19/10/2026
What it looks like
See HVS, HVM and HVM+ below →Expiring soon — this listing lapses on 19/10/2026, in 6 days.
Telling the series apart
HVE, LVL and LV Flex look quite different from the other models and are usually easy to recognise.
HVS, HVM, HVM+, HVB and LVS have some differences in size, but look very similar.
Check the nameplate to confirm the model.

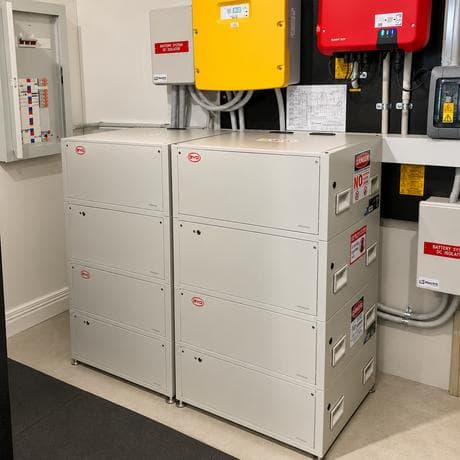

Battery-Box Premium LVL15.41 model · 15.36 kWhcurrent
- Usable capacity
- 15.36 kWh
Floor-mounted rectangular cabinet, up to two cabinets can be stacked directly on top of each other.

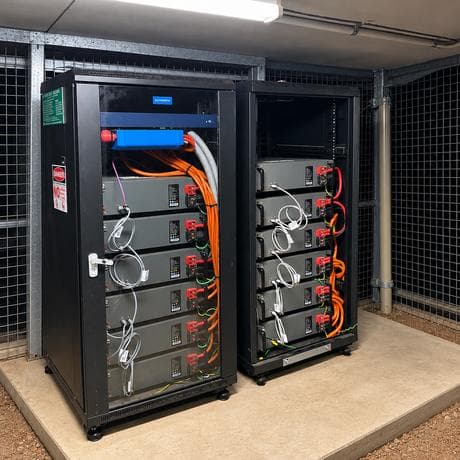

LV Flex1 model · 5.00 kWhcurrent
- Usable capacity
- 5.00 kWh
Rack-mounted module inside an enclosure, each battery is CEC listed individually.

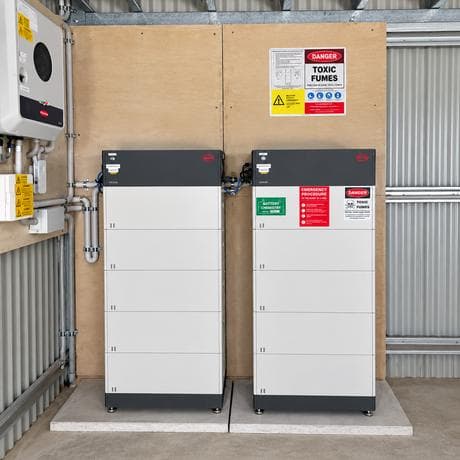

HVS, HVM and HVM+16 models · 5.12–22.08 kWhHVS: expires in 6 daysHVM: expires in 53 daysHVM+: current
| HVS | HVM | HVM+ | |
|---|---|---|---|
| Module capacity | 2.56 kWh | 2.76 kWh | 2.76 kWh |
| Number of modules | 2–5 | 3–8 | 3–8 |
| Total capacity | 5.12–12.80 kWh | 8.28–22.08 kWh | 8.28–22.08 kWh |
| CEC expiry | 19/10/2026 | 5/12/2026 | 31/12/2027 |
The same tower — same width, depth and module height, same finish. HVM+ is equivalent to the HVM, but listed under a different manufacturer entity.

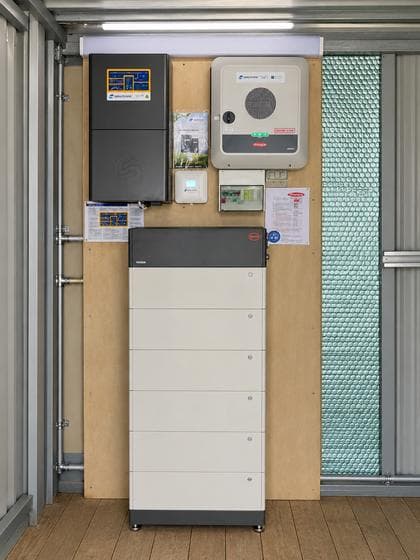

LVS6 models · 4.00–24.00 kWhexpires in 55 days
- Module capacity
- 4.00 kWh
- Number of modules
- 1–6
Looks similar to the HVM and stands the same height for the same number of modules, but each module is wider and holds more energy.
HVE12 models · 6.43–23.58 kWhcurrent
- Module capacity
- 4.29 kWh or 6.43 kWh
- Number of modules
- 1–4
Slimmer looking than the HVS or HVM, and can be wall mounted.

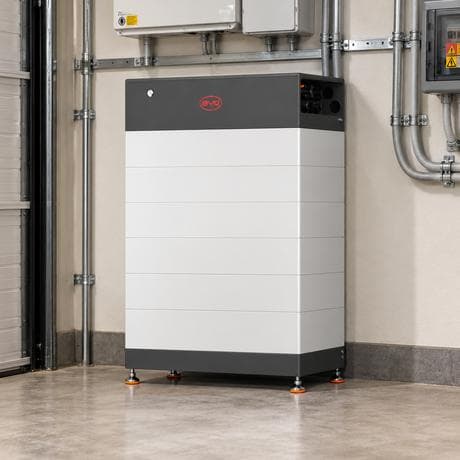

HVB9 models · 5.94–29.69 kWhcurrent
- Module capacity
- 2.97 kWh
- Number of modules
- 2–10
Similar looking to the HVS or HVM, but more compact and wider.
