Tesla Battery Model Finder

Each Powerwall has 13.5 kWh of storage. Additional units can be added to increase the total battery capacity.

Tesla models on list
20
Inverter configurations
3
Expansion units
0–3
Usable capacity
13.5–54 kWh

Identify the model

1

Which Powerwall is installed?

Not sure which one you are looking at? See Powerwall 3 vs Powerwall 3 AC below.

2

Inverter size

Not readable from the part number. Confirm the inverter size from the compliance paperwork.

3

Expansion units in the photos

Count the units with a part number starting 1807000. Each adds 13.5 kWh of usable capacity.

CEC approved model

1707000-10 kVA-27(AS4777-2 2020)

Usable capacity
27.0 kWh
Nominal capacity
28.8 kWh
Approved
19/08/2025
Expires
31/12/2027

Photos must show

  • 1× Powerwall 3 main unit — part number 1707000-xx-y, with PV power conversion equipment on the nameplate
  • 1× Expansion — part number 1807000-xx-y
  • Compliance paperwork confirming the 10 kVA commissioned output
CEC approved battery list →

Powerwall 3 vs Powerwall 3 AC

Powerwall 3

1707000-xx-y
  • Battery with an inbuilt inverter that can be configured to 5, 10 or 11.04 kVA.
  • Part number starts with 1707000.
  • Nameplate includes PHOTOVOLTAIC (PV) POWER CONVERSION EQUIPMENT.
  • Common in PV + battery installations because the solar panels can connect directly to the Powerwall 3.

Powerwall 3 AC

1707000-70-y
  • Battery with a fixed 5 kW inverter.
  • Part number 1707000-70-y.
  • CEC models contain ACPW3 — e.g. 1707000-ACPW3-13.5.
  • Typically used in battery-only installations. If solar is installed, the panels connect to a separate inverter.

Reading a model number

1707000-10 kVA-40.5
  • 1707000

    The main unit of a Tesla Powerwall 3. This is the part number you will find on the battery nameplate.Note: see Reading nameplates below.

  • 10 kVA

    Inverter capacity. Powerwall 3 may be configured to 5, 10 or 11.04 kVA.Note: Powerwall 3 AC uses ACPW3 instead, as its inverter output is not configurable. It is a fixed 5 kW AC battery system, designed to be AC-coupled to an existing solar/inverter system rather than acting as the inverter for the PV system.

  • 40.5

    Total usable battery capacity of the whole system, in kWh.

    13.5Powerwall 3 only
    27Powerwall 3 + 1 Expansion
    40.5Powerwall 3 + 2 Expansions
    54Powerwall 3 + 3 Expansions

Note: the capacity in the CEC model represents the complete Powerwall 3 configuration, not the capacity of an individual Expansion.

Identifying the inverter size

The same 1707000-xx-y Powerwall 3 hardware can be configured as 5, 10 or 11.04 kVA, so the physical nameplate cannot confirm the inverter size. This is set during commissioning.

Reading nameplates

Both units are 13.5 kWh and have similar-looking labels. To identify whether the unit is a Powerwall 3 or Expansion, check the part number on the label.

Main Powerwall 3

1707000-xx-y

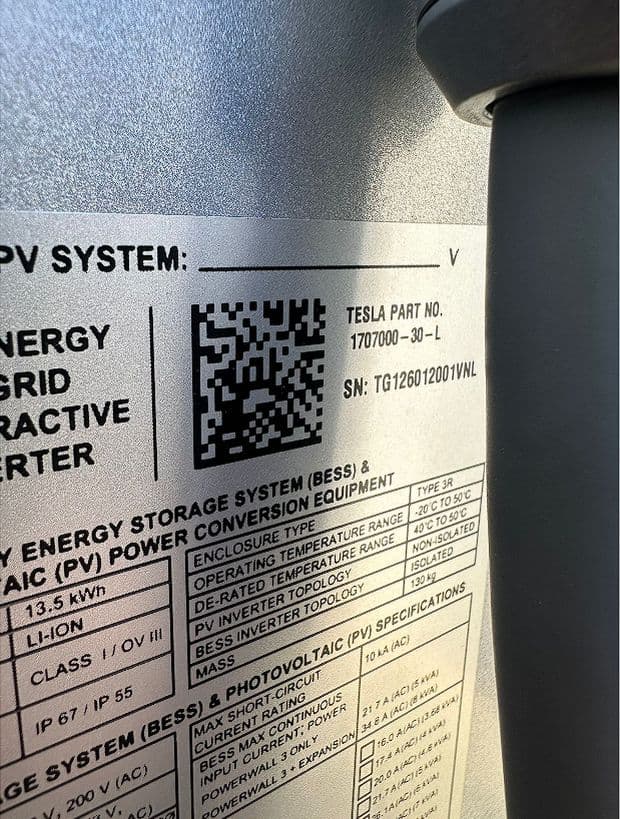

Tesla Powerwall 3 nameplate label
In this photo
  • TESLA PART NO. 1707000-30-L — main unit
  • Header reads PHOTOVOLTAIC (PV) POWER CONVERSION EQUIPMENT — the PV inverter is in this unit

Contains the battery and inverter and provides 13.5 kWh usable capacity.

Powerwall 3 Expansion

1807000-xx-y

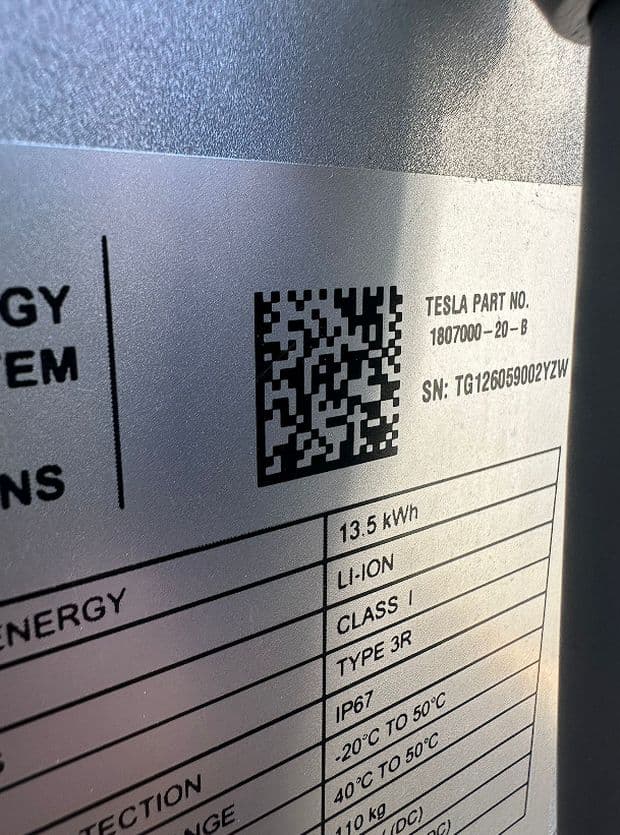

Tesla Powerwall 3 Expansion nameplate label
In this photo
  • TESLA PART NO. 1807000-20-B — Expansion

Adds 13.5 kWh usable capacity and does not contain an inverter.

An Expansion on its own cannot be the model listed in the paperwork

1807000 does not appear as a standalone model on the CEC Approved Battery List. The Expansion is instead reflected in the total capacity of the approved Powerwall 3 configuration.
